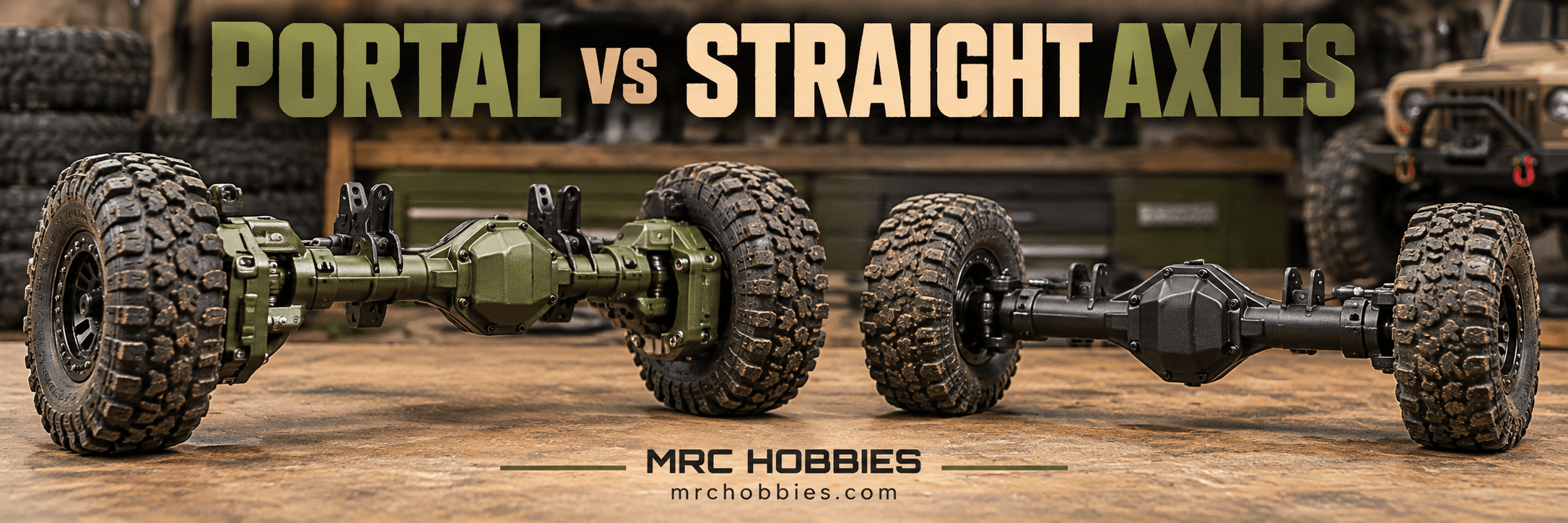

Axle design changes how a crawler meets obstacles
When a crawler crosses a rock, the axle housing may contact the obstacle before the tires have finished climbing.
This is one reason axle design matters.
Portal axles and conventional straight axles arrange their drive components differently. That difference influences clearance, gearing, packaging, and servicing.
Neither design should be judged on one feature alone. The complete crawler still depends on tires, suspension, weight distribution, and driving technique.
What is a straight axle?
In a conventional straight axle, the axle shafts and wheel outputs generally lie along the same axis.
The central housing contains the differential or other drive arrangement, while shafts transfer rotation toward the wheels.
The term “straight axle” does not mean the differential must be open. Locked arrangements are also possible.
The housing’s shape, tire size, and drivetrain design influence available clearance.
What is a portal axle?
A portal axle uses an offset wheel-end gear arrangement.
This allows the main axle shaft and housing to sit higher relative to the wheel centre than in a comparable conventional arrangement.
Manufacturer descriptions identify increased clearance beneath the axle’s central housing as a key portal feature. traxxas.com
The wheel-end gears also contribute to the drivetrain ratio in reduction-style portal systems.
Where clearance improves
Portal clearance is particularly relevant beneath the axle housing.
It does not automatically improve clearance beneath the central chassis skid, transmission, or every suspension component.
These are separate areas.
A crawler can have generous axle clearance and still hang up between the axles. Wheelbase, skid shape, tire size, and suspension setup all contribute.
Comparing the designs
FeatureStraight axlePortal axleWheel output relationshipGenerally aligned with axle shaftOffset through wheel-end gearsCentral housing clearanceDepends on housing and tiresCan be higher for comparable tire sizeWheel-end componentsConventional arrangementAdditional geared housingsService pointsAxle and drivetrain componentsAxle components plus portal assembliesSelection priorityComplete crawler designComplete crawler design
The additional components are neither automatically a problem nor maintenance-free.
Gearing and torque considerations
Reduction at the wheel end changes how torque and speed relate through the drivetrain.
This can influence loads in upstream components, but the total result depends on the complete gear ratios and system design.
Do not assume a portal conversion preserves the original final drive ratio.
Check whether front and rear assemblies use matching intended ratios and whether the motor and gearing remain appropriate.
Maintenance differences
Portal assemblies contain gears, bearings, seals, and hardware that require inspection according to the model’s procedure.
After contamination or wet use, additional servicing may be necessary.
Straight axles also need maintenance. Fewer wheel-end gears do not make the rest of the drivetrain immune to dirt, water, or wear.
Use the correct lubricants and quantities rather than packing every space with grease.
Is a portal conversion straightforward?
A conversion may affect track width, steering, suspension links, wheels, gearing, and driveshaft connections.
Confirm the complete parts requirement before ordering.
A physically attachable axle may still create poor geometry or clearance elsewhere. Wheel offset and body fit can change too.
Manufacturer-supported combinations provide a clearer starting point than mixing assemblies by appearance.
Choose for your driving purpose
Think about where your crawler struggles.
If the axle housing repeatedly contacts rocks, portal clearance may be relevant. If the central skid hangs up, a different part of the setup deserves attention.
For scale appearance, choose the design that suits the build. For performance, assess the entire vehicle rather than selecting an axle category in isolation.
Common mistakes to avoid
Avoid assuming portals guarantee better climbing, overlooking ratio changes, and buying conversions without checking supporting components.
Do not compare two vehicles with different tires and weight distribution and attribute every difference to their axles.
Final thoughts
Portal axles provide an offset wheel-end arrangement that can improve axle-housing clearance. Straight axles use a more conventional drive layout.
Choose through the complete crawler design, terrain, maintenance needs, and verified compatibility.
